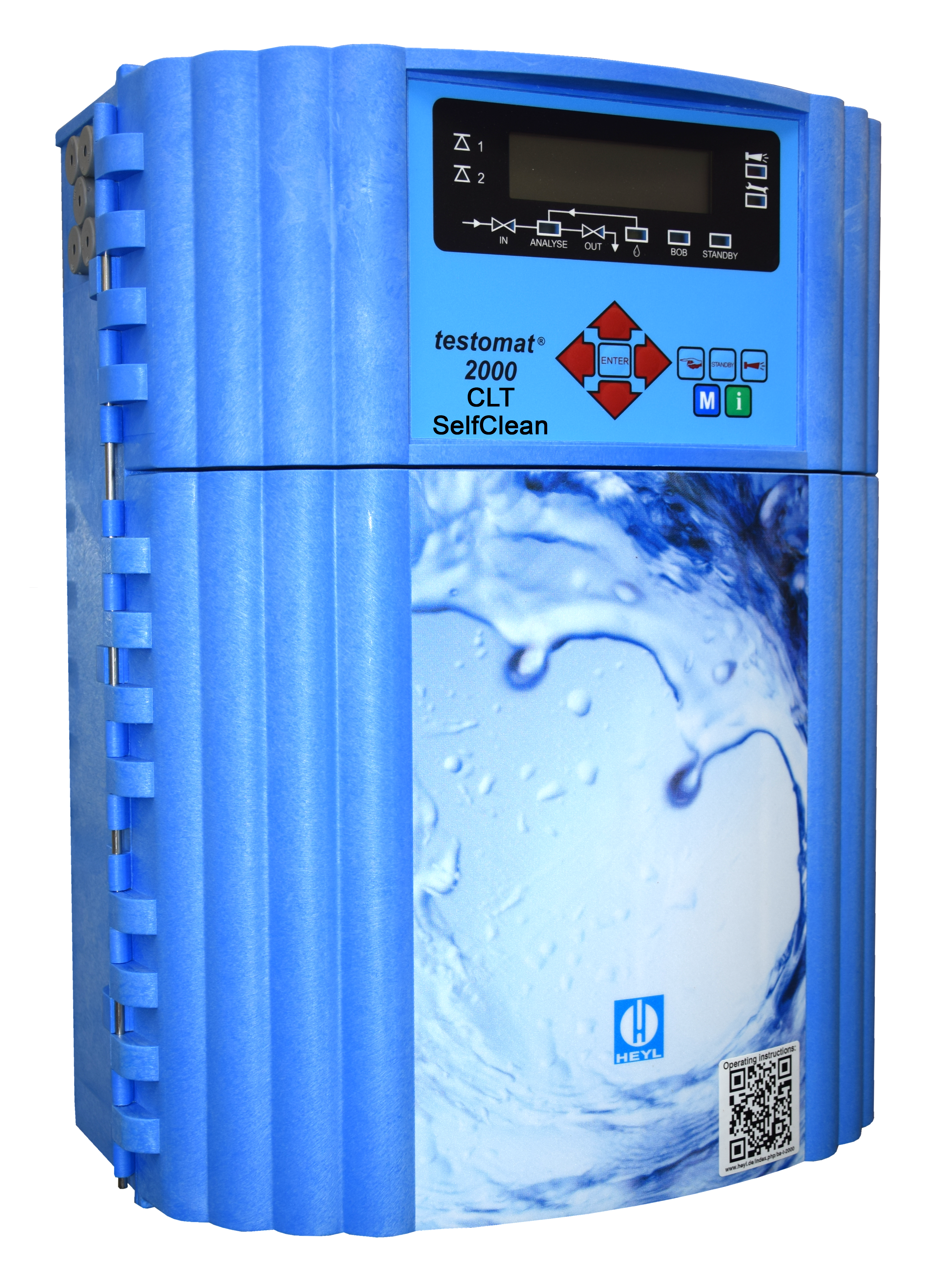

Testomat 2000® CLT self clean
Product number: 100245
7.834,30 €*
* Prices excl. VAT plus shipping costs.
Product information
Dimensions: 380 x 280 x 480 mm
Weight: 10,600 kg
Measurement parameters: Total chlorine
Measuring range: Total chlorine: 0.00 – 0.99 mg/l (Resolution: 0.01 mg/l) 1 – 2.5 mg/l (Resolution: 0.1 mg/l)
Range of application: Monitoring of chlorination plants for drinking water | Monitoring of chlorination plants for swimming pools • Provision of protection for reverse osmosis membranes • Controlling of chlorine biocides and conditioning agents
Menu navigation: German, English, French
Description
Description "Testomat 2000® CLT self clean"
The Testomat 2000® CLT Self Clean process photometer with additional cleaning function for the measuring chamber is an online analyzer for monitoring the total chlorine content (CLT) in the range of 0-2.5 mg / l (ppm). Switchable to free chlorine in the same range.Performance profile:
- Analysis via automatic dosing of three reagents
- The analysis result is displayed after a reaction time of approx. 1 min. (Measuring time without rinsing time)
- 2 independently programmable limit contacts for monitoring and control tasks
- Menu-driven operation and programming via plain text display
- High-precision titration using a piston dosing pump
- Analysis initiation:
- Automatic interval operation (Interval pause adjustable from 0–99 min)
- External control
- Dynamic (fatigue-dependent interval operation)
- Quantity dependent via contact water meter
- Two independent limits with hysteresis (1, 2 oder 3 bad analyzes) and adjustable switching functions
- Monitoring of two measuring points (Switching by external solenoid valves)
- programmable service address
- Internal error documentation
- Programmable maintenance interval for maintenance request
