NeoTecMaster® – 5 inch

Product number: 850960
2.215,00 €*
* Prices excl. VAT plus shipping costs.

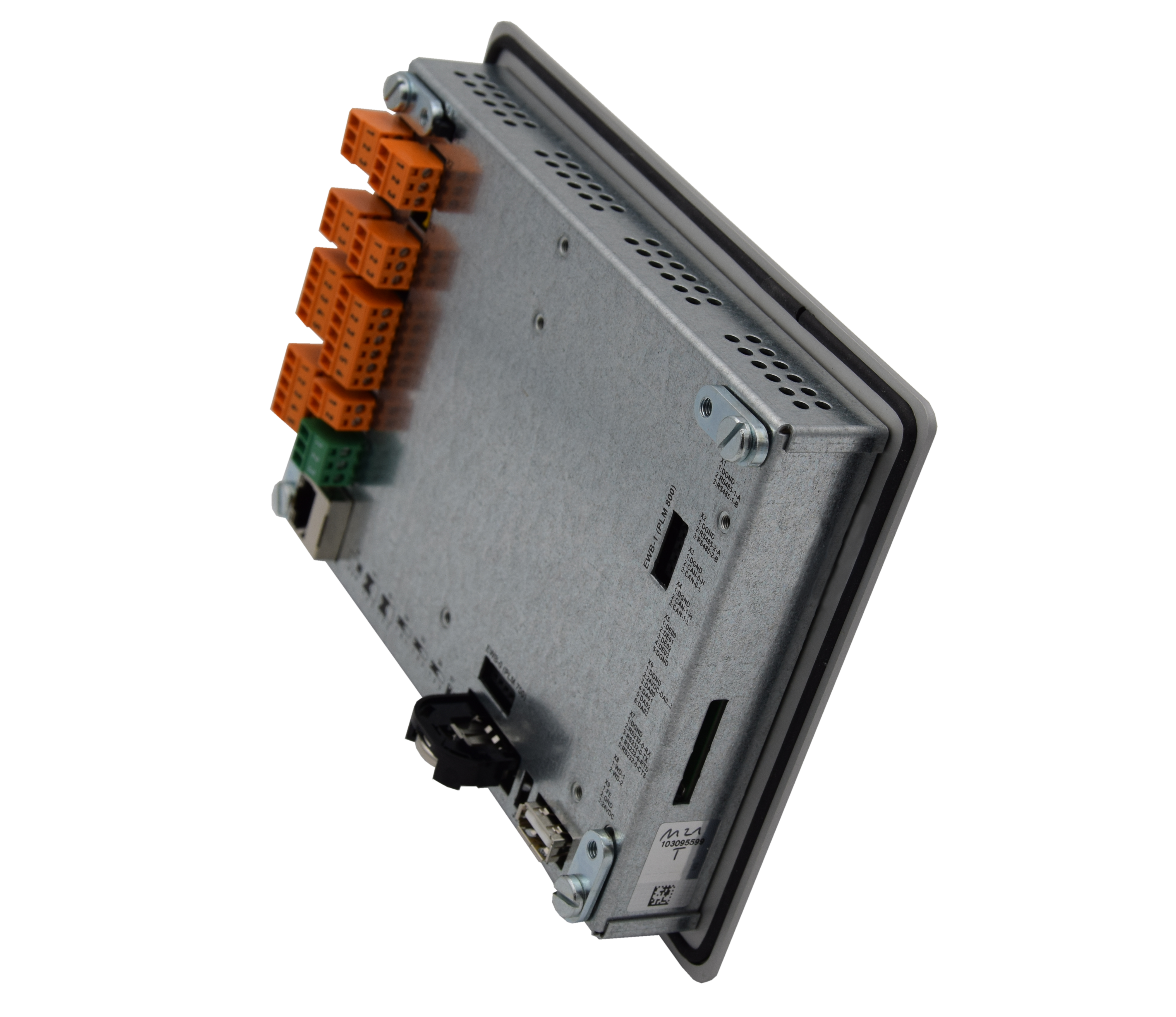

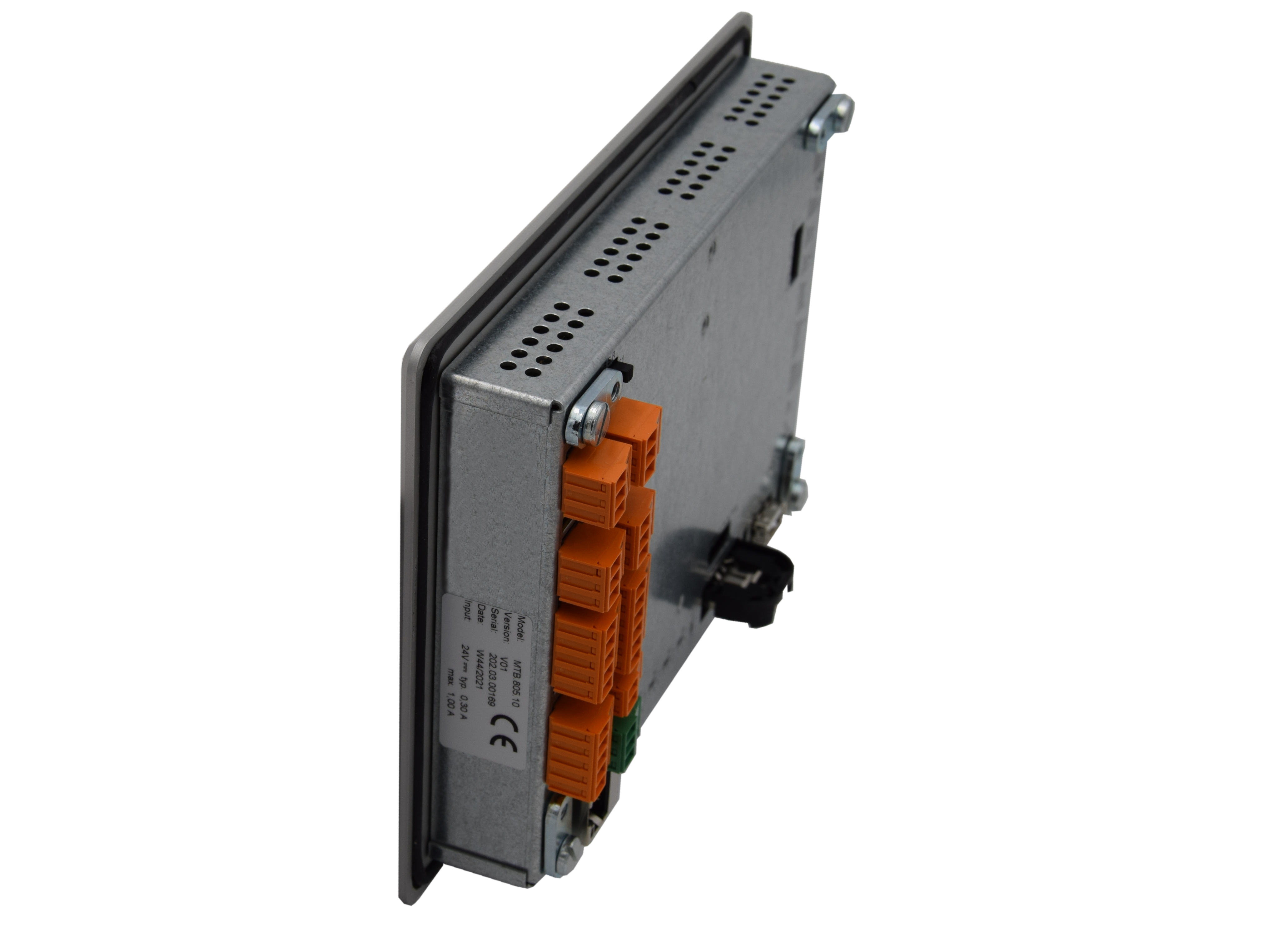

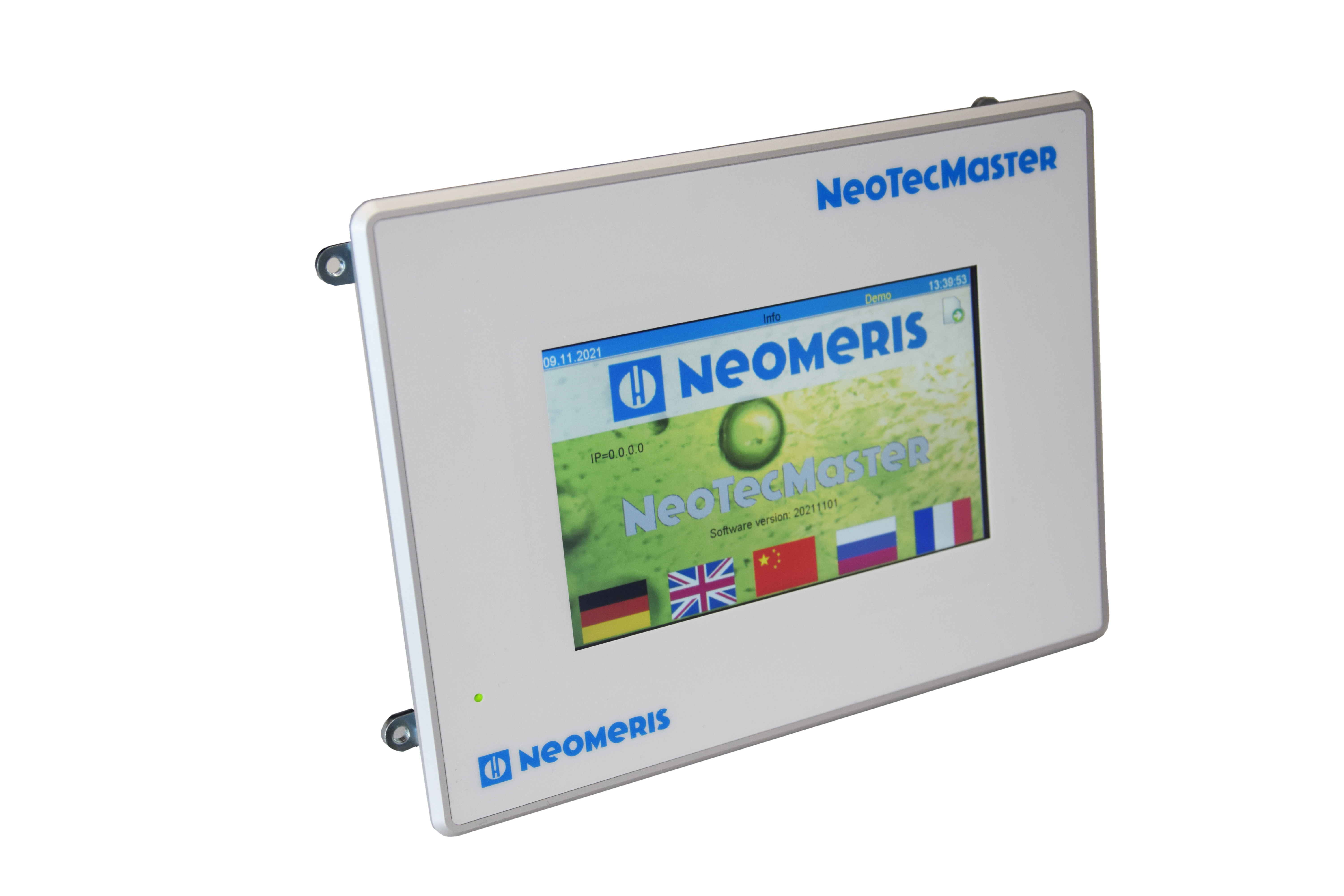

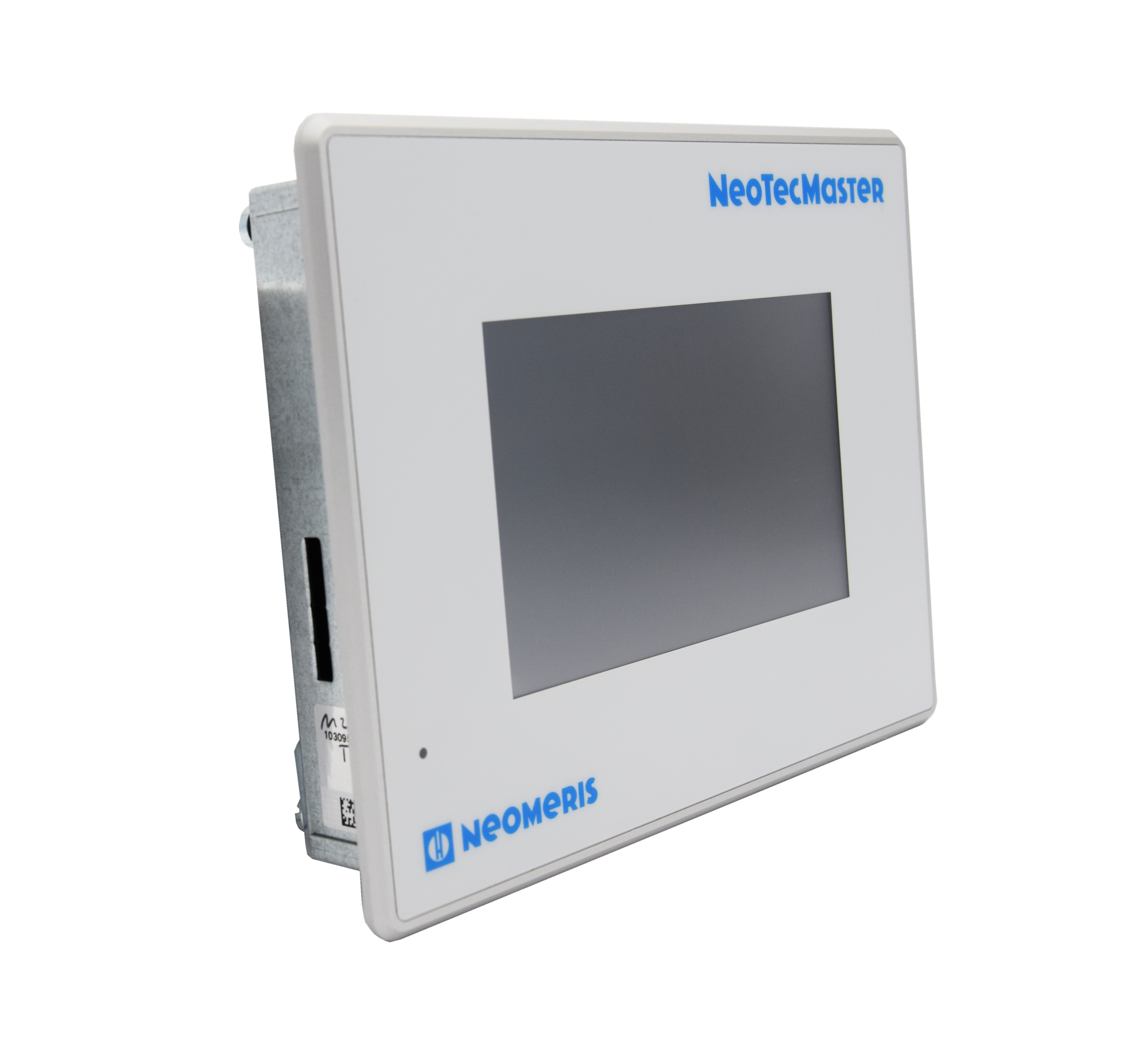

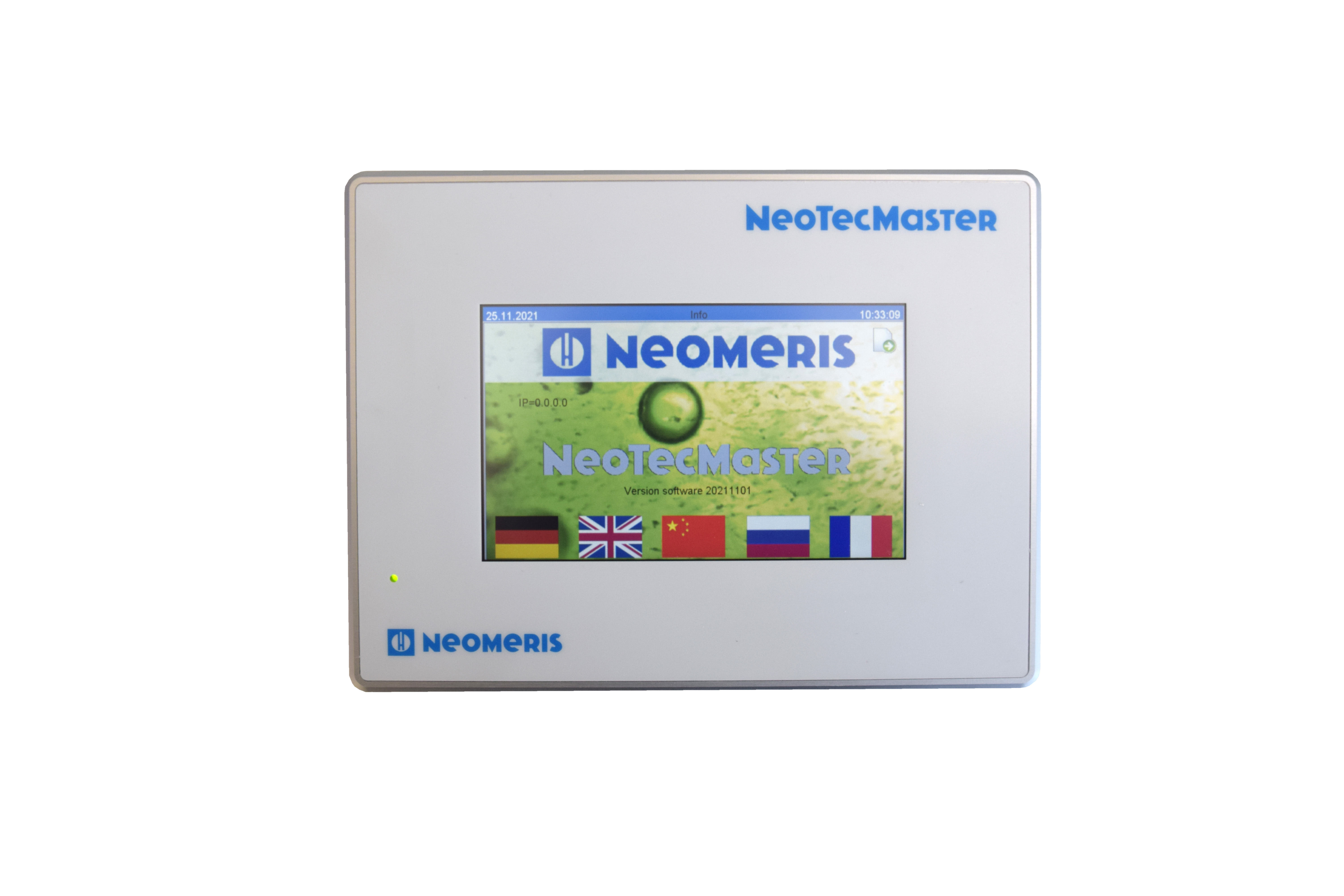

NeoTecMaster® – 5 inch
Product no. 850960 in the shop
Neomeris

Available variants

Number of parameters to be measured, up to: 4, 8
NeoTec Slave function module 1: RS232 (integration of another measuring device, e.g. Testomat EVO / LAB), without
NeoTec Slave function module 2: 4-20mA module (6x input + 4x output), 4-20mA module (8x input), without
NeoTec Slave function module 3: Relay module (4 relays 240 VAC), Relay module (8 relay outputs 24 VDC), without

Product information

Dimensions: 180 x 135 x 48 mm
Weight: 0,800 kg
Menu navigation: German, English, Chinese, Russian, French (others languages on request)
Our comment: We will be happy to work with you to find the application solution that suits you best, just give us a call or use our enquiry form! You will also find a data collection matrix under the Download tab, in which you are welcome to enter your desired measurement requirements.

Description

Description "NeoTecMaster® – 5 inch"

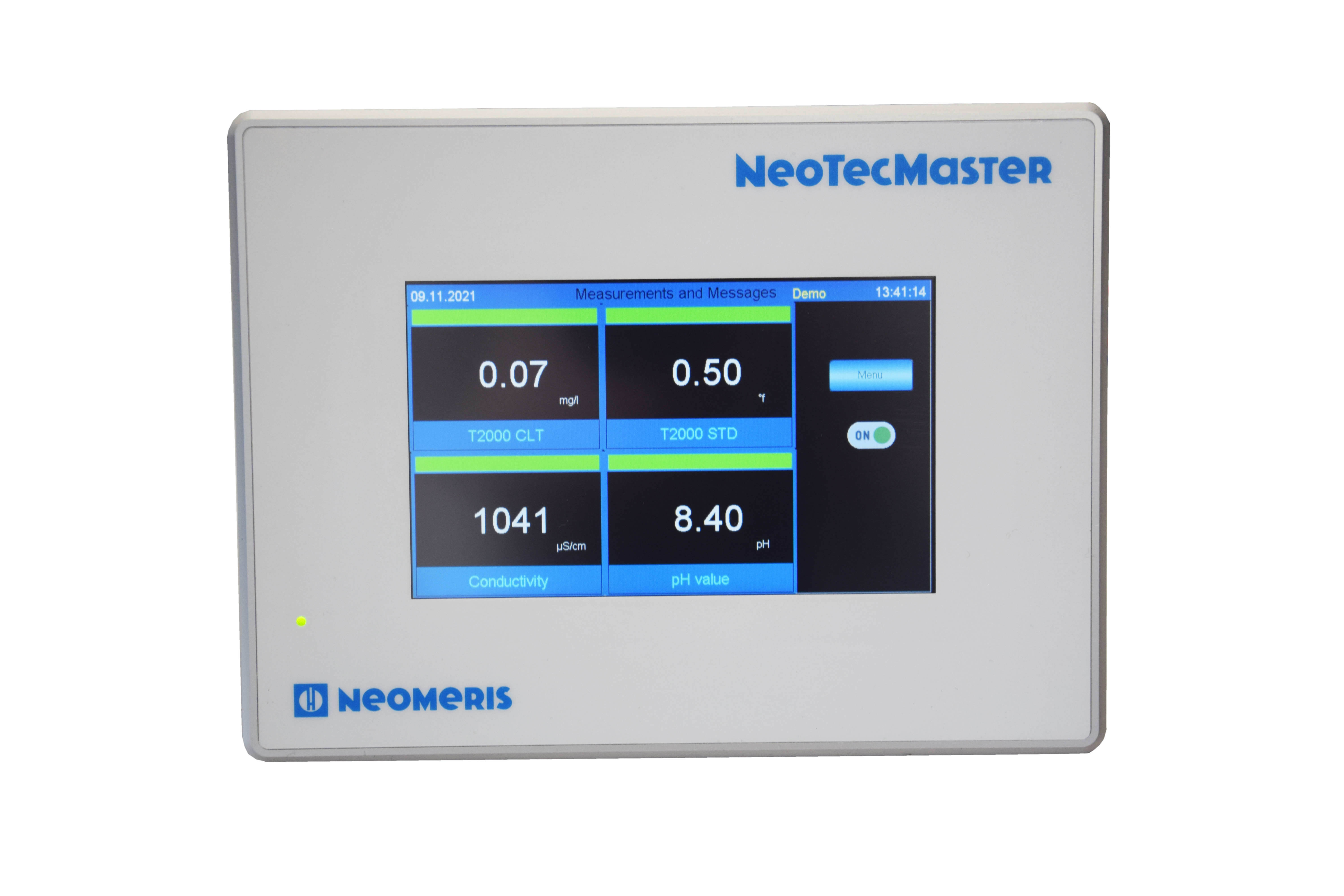

Our 4- or 8- channel system allows the processing of up to four or eight measurement signals.
For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.



Advantages:
  • Simple operation
  • Integration of the Testomat® device world
  • Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housing
  • Modular function range expandable by NeoTec slave modules (measure, control, control)
  • Available as installation variant or structure variant
