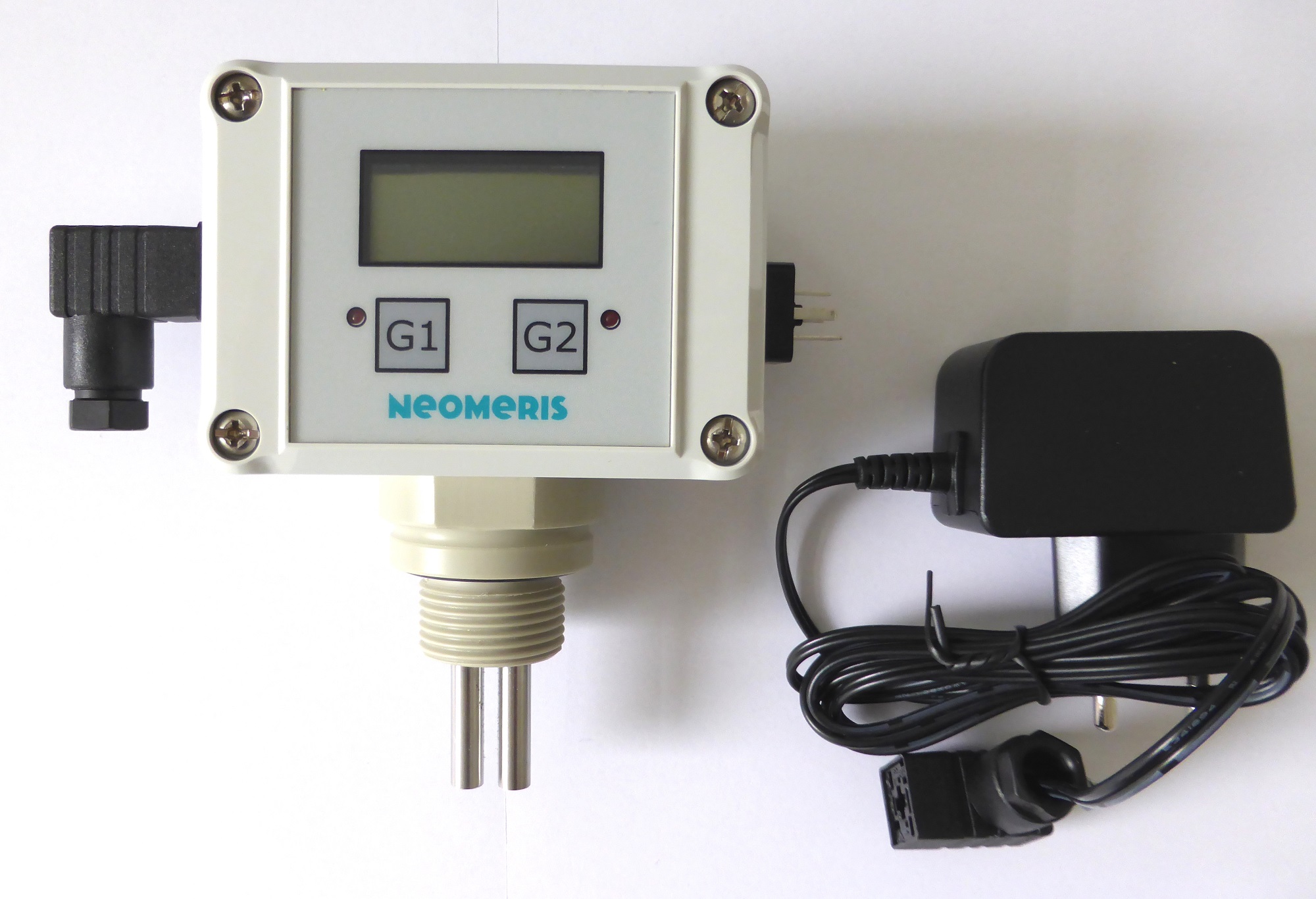

N-LF, conductivity measuring instrument with integrated 3/4″ screw-in measuring cell
Product number: 880559
245,75 €*
* Prices excl. VAT plus shipping costs.
Product information
Dimensions: 140 x 195 x 70 mm
Weight: 0,290 kg
Menu navigation: German / English
Our comment: Would you like an OEM version with your company label or a different measuring range? Please contact us, because a realization is already possible for small quantities.
Description
Description "N-LF, conductivity measuring instrument with integrated 3/4″ screw-in measuring cell"
Device for measuring the electrical conductivity of aqueous solutions in conjunction with an integrated two-electrode screw-in measuring cell 3/4 inch without temperature compensation.The devices are selected according to the respective measuring range and are available as a variant with or without potential-free relay output.
Application examples
- softener cartridges
- complete desalination
- reverse osmosis
Added value
- Operation at 9 V DC via supplied plug-in power supply
- 1 potential-free relay with switchable mode of operation of relay control
- Limit value display optically by means of LEDs
Technical data
- Measuring ranges: 0 - 10 / 100 / 1000 μS/cm, depending on instrument type
- Limit value displays: Optical by means of LEDs, limit values adjustable between 0 and 100 % of the measuring range
- 1 potential-free relay contact, max. 2 A / 250 V AC, 60 W / 62.5 VA (if selected)
- Power supply: 9 V DC via plug-in power supply unit 100 - 240 V AC
- Power consumption: approx. 1 W
- Protection class: IP 65
- Housing: polycarbonate housing, 82 x 60 x 57 mm
- Connections: side connection for plug-in power supply and one relay output (if selected)
- Measuring cell: ¾", PP, PN 6, Tmax. 60°C
