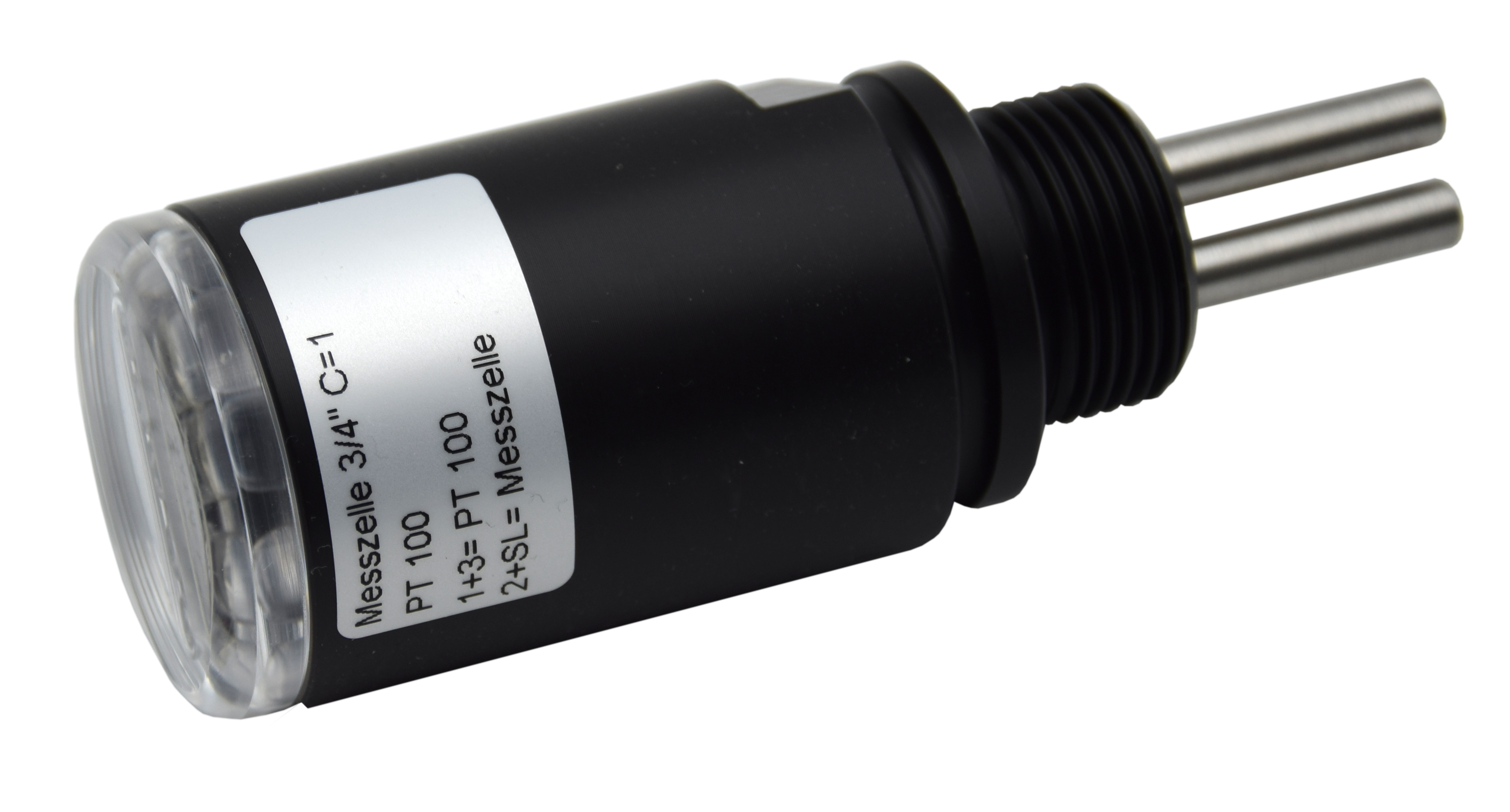

N-LED10, conductivity measuring instrument 0-10μS/cm with 5 LEDs and integrated 3/4″ screw-in measuring cell
Product number: 880635
138,00 €*
* Prices excl. VAT plus shipping costs.
Product information
Dimensions: 250 x 140 x 55 mm
Weight: 0,212 kg
Measuring range: 0-10 μS/cm
Description
Description "N-LED10, conductivity measuring instrument 0-10μS/cm with 5 LEDs and integrated 3/4″ screw-in measuring cell"
Technical data:Measuring range: 0 - 10 μS/cm (without temperature compensation)
<0.1 <0.5 < 1.0 < 5.0 < 10 μS/cm
LED display: 3x green; 1x yellow; 1x red
Power supply: 100-240 VAC plug-in power supply unit
Energy consumption: < 500 mW
Housing material: POM black (polyoxymethylene)
Viewing window material: PMMA (acrylic glass)
Electrodes: Stainless steel 1.4571
Dimensions: Diameter 40 mm x 68 mm (Top) / 110 mm (Total)
Gasket electrodes: EPDM
Gasket housing: EPDM
Application limits: Pressure max.: 6 bar; Temperature max.: 60 °C
Protection class: IP 65*

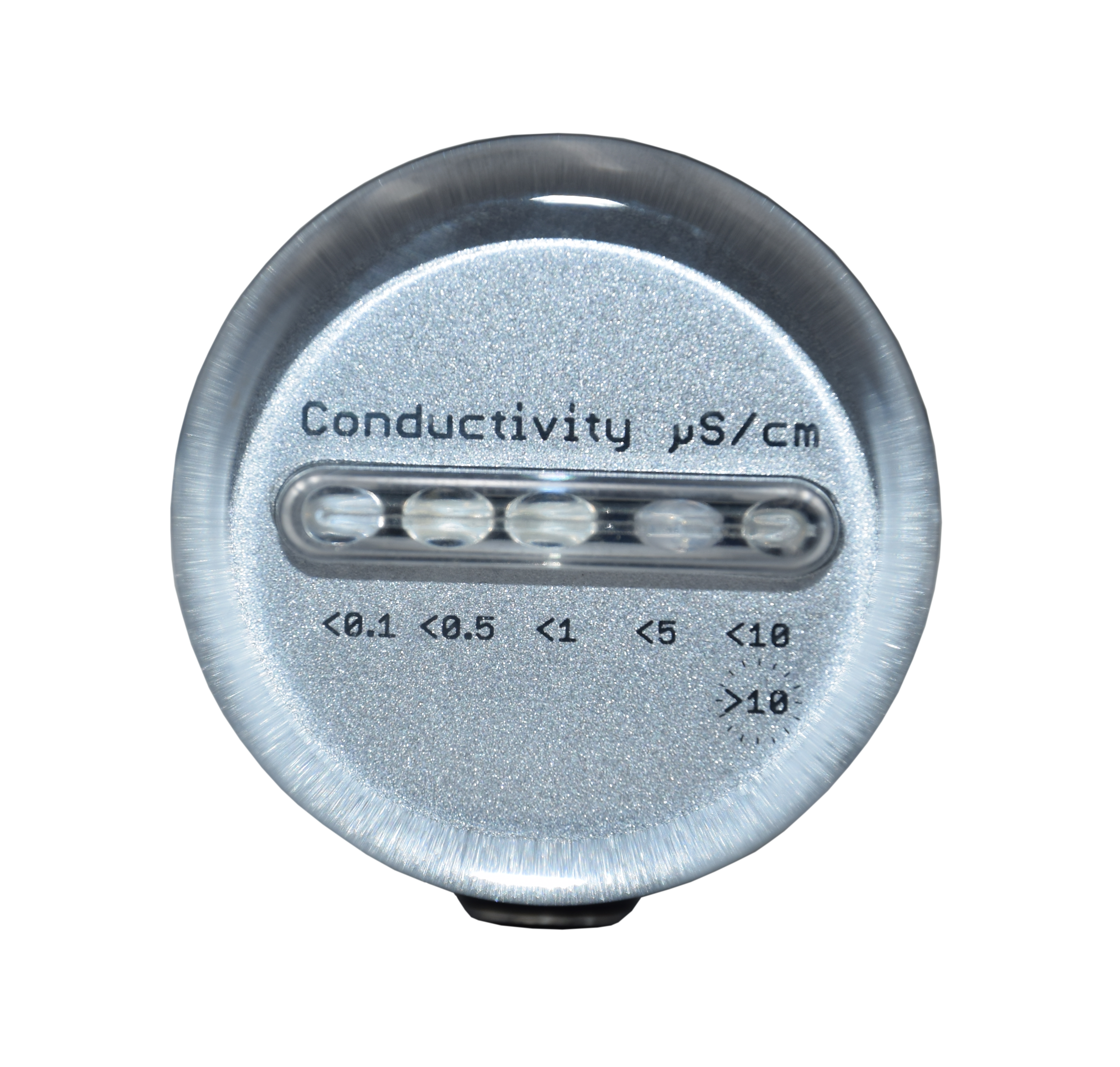

Display Measuring range
3 LED green < 0.1 μS/cm
2 LED green < 0.5 μS/cm
1 LED green < 1.0 μS/cm
1 LED yellow < 5 μS/cm
1 LED red < 10 μS/cm
1 LED red flashing ≥ 10 μS/cm
