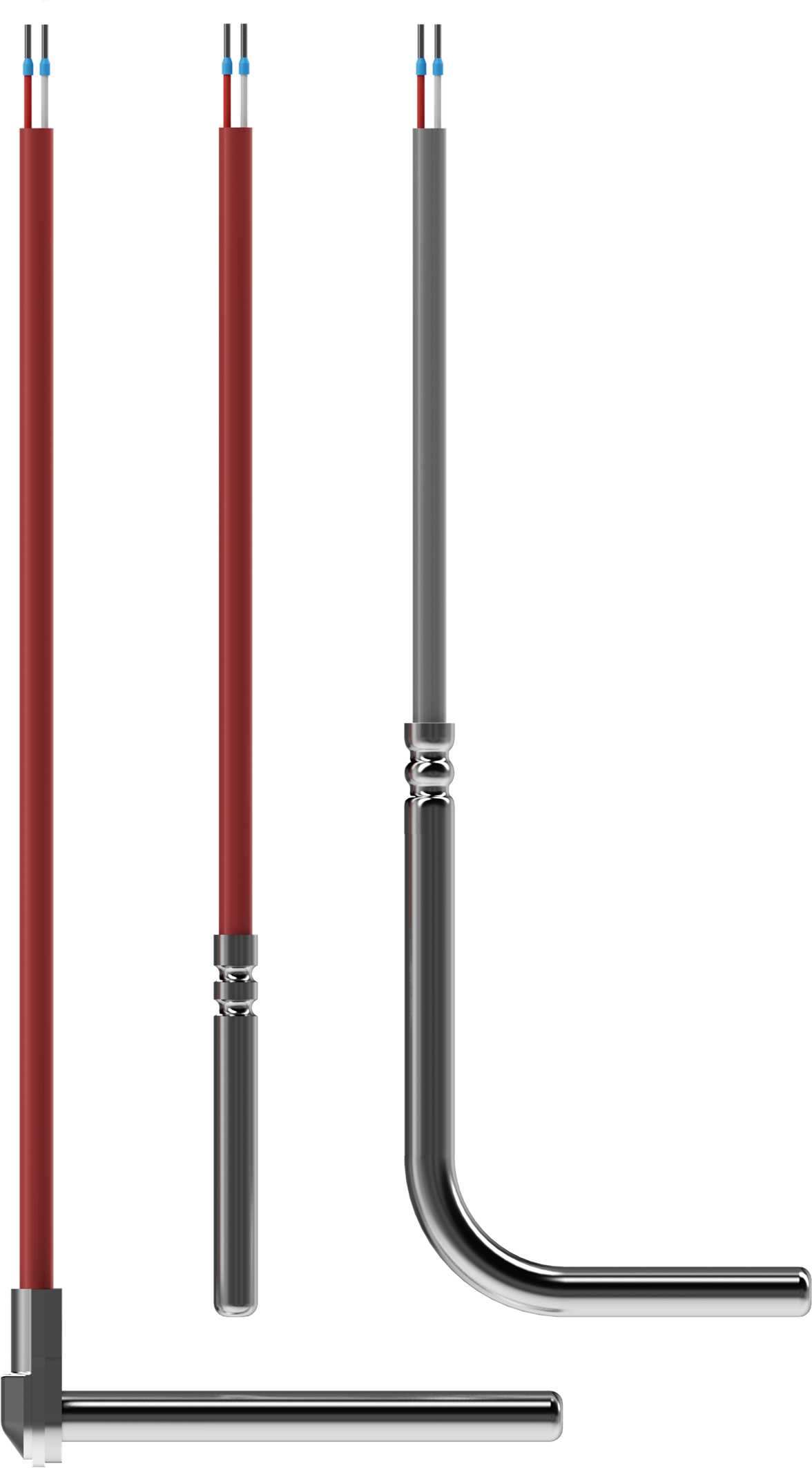

JUMO insertion resistance thermometer with spiralised connection cable, one-piece stainless steel protection tube
Product number: 802056
58,80 €*
* Prices excl. VAT plus shipping costs.
Description
Description "JUMO insertion resistance thermometer with spiralised connection cable, one-piece stainless steel protection tube"
Push-in resistance thermometer with spiralised connection cable, one-piece stainless steel protection tube
- Temperature measuring range: -5 ... +105 °C
- Measuring insert: 1x Pt 100 in two-wire circuit
- Installation length: 50 mm
- Cable length: 1100 mm (stretched)
- Tolerance class: Class B (standard)
- Thermowell diameter: 6 mm
- Wire end ferrules
- Extra code: without
- Available as single and dual resistance thermometers
- Available in straight and angled versions to meet different mounting requirements.
- Flexible connection cables
- Strain relief to protect against mechanical stress
- Meets SIL and PL qualification standards for maximum safety
- Optional kink protection
Areas of application:
- Laboratory technology
- Climate cabinets
- Solar systems
- Heating, air conditioning, ventilation
- Apparatus engineering
The insertion resistance thermometer offers precise temperature measurement in both liquid and gaseous media. The wide range of variants makes it ideal for various applications in industrial environments.
This thermometer ensures reliable performance in dry and damp rooms and enables accurate temperature measurements. The robust design and flexible configuration options ensure precise temperature monitoring.
