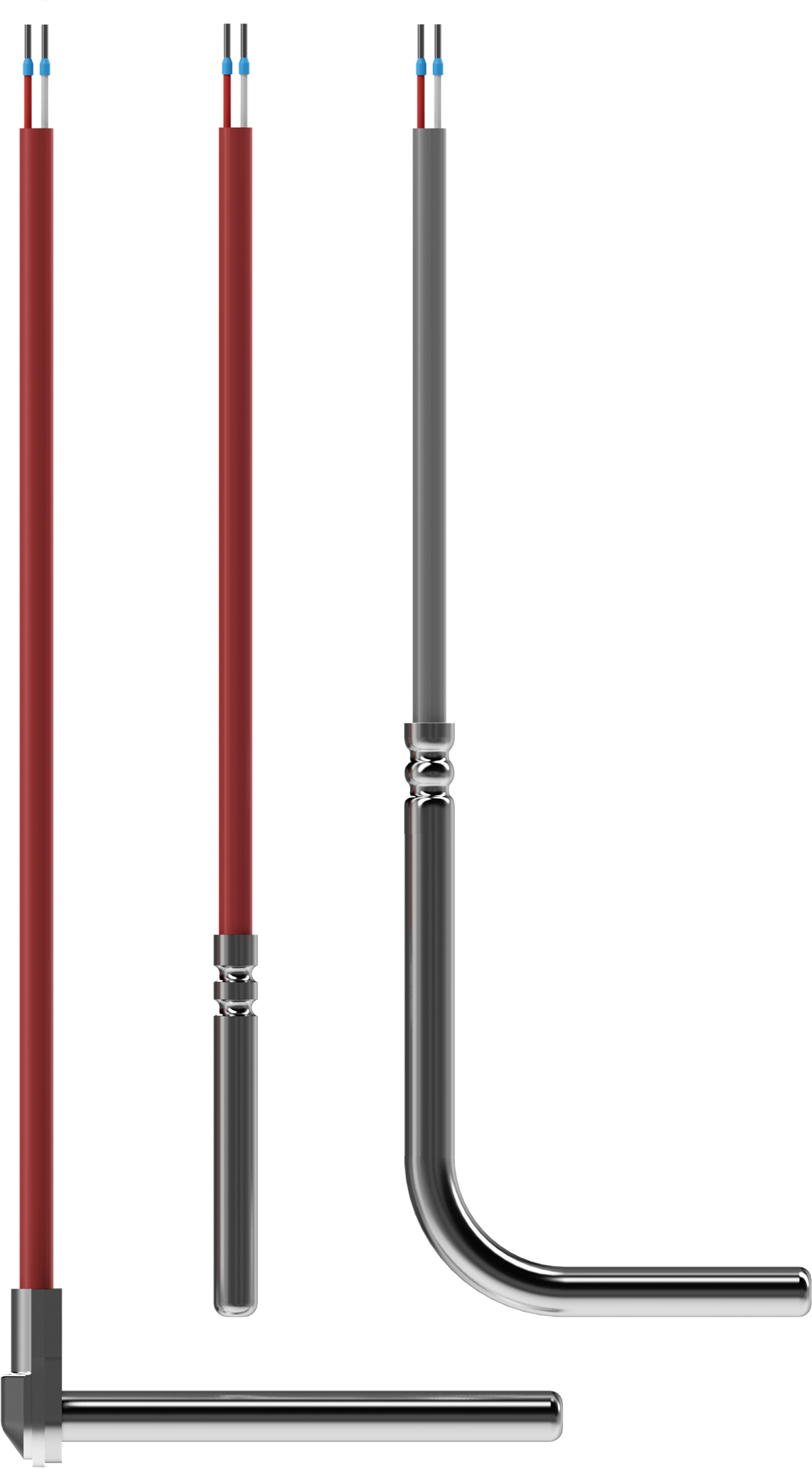

JUMO insertion resistance thermometer with connection cable, multi-part stainless steel protection tube (welded)
Product number: 802058
89,70 €*
* Prices excl. VAT plus shipping costs.
Description
Description "JUMO insertion resistance thermometer with connection cable, multi-part stainless steel protection tube (welded)"
Push-in resistance thermometer with spiralised connection cable, one-piece stainless steel protection tube
- Temperature measuring range: -50 ... +260 °C / metal braiding
- Measuring insert: 1x Pt 100 in two-wire circuit
- Installation length: 100 mm
- Cable length: 2500 mm
- Tolerance class: Class B (standard)
- Thermowell diameter: 6 mm
- Wire end ferrules
- Extra code: with bend protection, cable shielded
- Available as single and double resistance thermometers
- Available in straight and angled versions to meet different installation requirements.
- Flexible connection cables
- Strain relief to protect against mechanical stress
- Meets SIL and PL qualification standards for maximum safety
- Optional kink protection
- Areas of application:
Areas of application:
- Laboratory technology
- Climate cabinets
- Solar systems
- Heating, air conditioning, ventilation
- Apparatus engineering
The insertion resistance thermometer offers precise temperature measurement in both liquid and gaseous media. The wide range of variants makes it ideal for various applications in industrial environments.
This thermometer ensures reliable performance in dry and damp rooms and enables accurate temperature measurements. The robust design and flexible configuration options ensure precise temperature monitoring.
