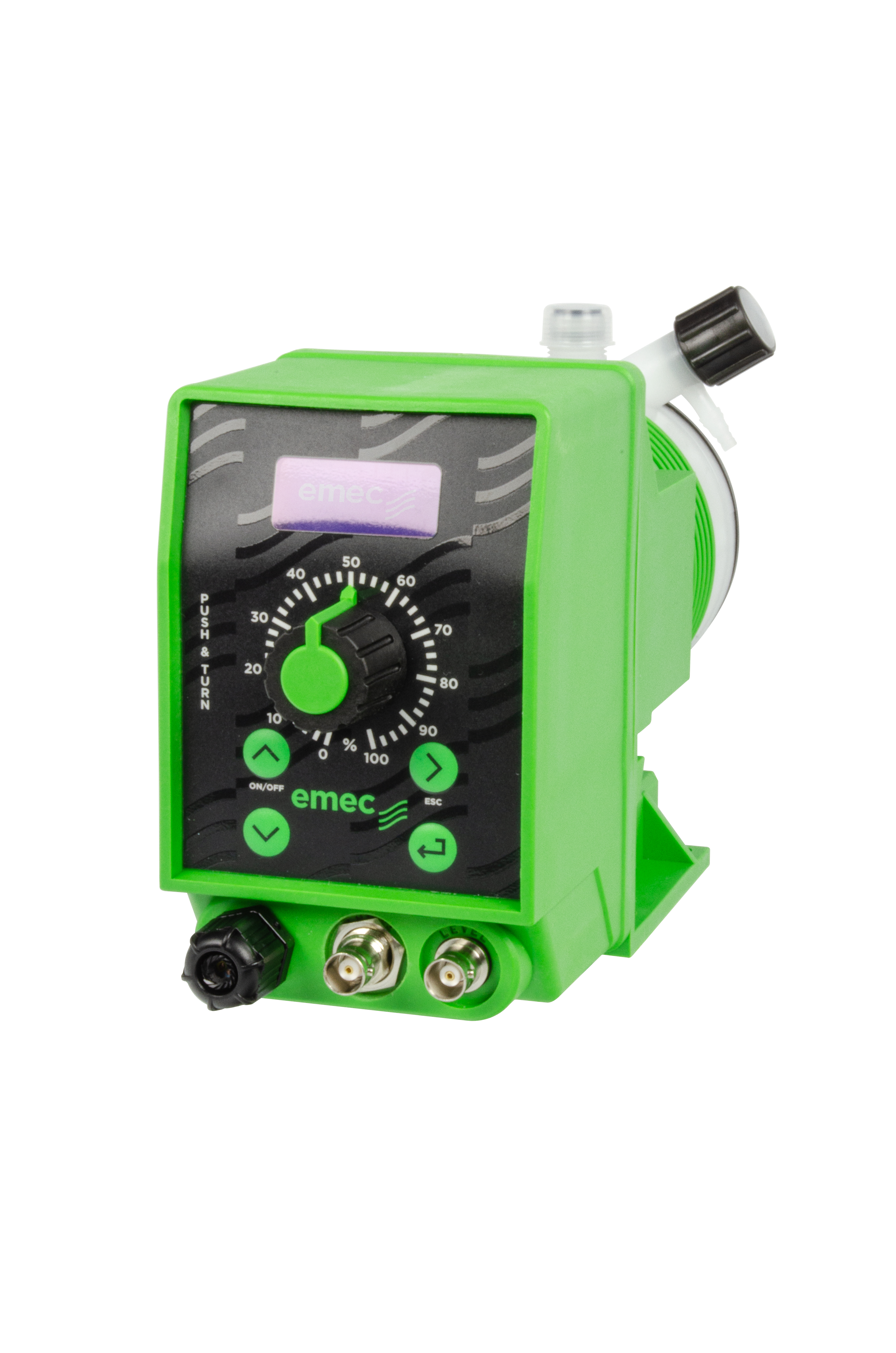

emec KMS-MF Dosing Pump

Product number: 896852
572,00 €*
* Prices excl. VAT plus shipping costs.
emec KMS-MF Dosing Pump
Product no. 896852 in the shop
emec

Available variants

Pump head and seal material: PP 10 bar / 5 l/h with EPDM seal, PP 15 bar / 4 l/h with EPDM seal, PP 18 bar / 2 l/h with EPDM seal, PP 2 bar / 18 l/h with EPDM seal, PP 20 bar / 1 l/h with EPDM seal, PP 5 bar / 1 l/h with EPDM seal, PP 5 bar / 10 l/h with EPDM seal, PP 8 bar / 8 l/h with EPDM seal, PVDF 10 bar / 5 l/h with Viton seal, PVDF 15 bar / 4 l/h with Viton seal, PVDF 18 bar / 2 l/h with Viton seal, PVDF 2 bar / 18 l/h with Viton seal, PVDF 20 bar / 1 l/h with Viton seal, PVDF 5 bar / 1 l/h with Viton seal, PVDF 5 bar / 10 l/h with Viton seal, PVDF 8 bar / 8 l/h with Viton seal

Description

Description "emec KMS-MF Dosing Pump"

The EMEC KMS MF series is a versatile dosing pump series that supports various operating modes, including constant, divide, multiply, ppm, perc, mlq, batch, volt, mA and timer. This flexibility enables precise and customisable dosing for different applications.

Here are some important features of the EMEC KMS MF series:

  • Multifunctionality: supports different operating modes for different dosing requirements.
  • High precision: Thanks to the PTFE diaphragm and robust design, the pumps are durable and reliable.
  • Easy integration: Can be controlled proportionally via external signals such as 4-20 mA, 0-10 V or pulses.

You can also:

  • Set automatic re-priming when the flow sensor is installed (sefl menu)
  • Enable the system for over-recovery (sefl menu)
  • Set a maintenance dosing when the system is at a standstill (ppm menu - upkeep setting)

The pump has the following features:

  • STAND-BY input
  • SEFL input (flow sensor)
  • LEVEL input (level controller)
  • ALARM contact output

The dosing capacity of the pump is determined by the number of pulses and the capacity per individual injection. The setting of individual injections is only linear for values between 30% and 100%.

The operating and control parameters are shown on an LCD display and managed via a keypad.
